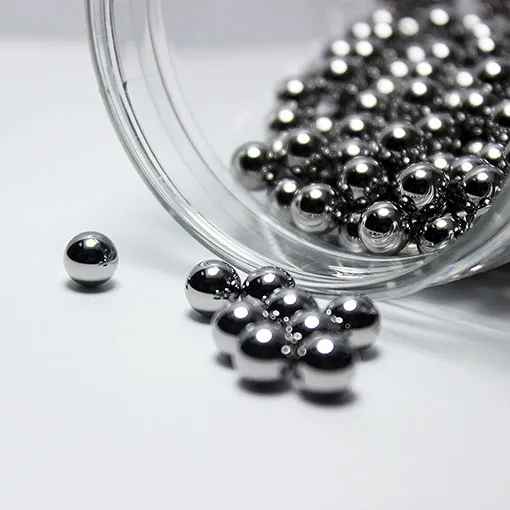

4mm~76.2mm G10~g1000 Chrome Bearing Steel Balls
High-polished bearing steel balls with HRC 60-62 hardness
Facebook
Twitter
LinkedIn
High-polished bearing steel balls with HRC 60-62 hardness
Excellent wear resistance, and corrosion resistance, suitable for manufacturing plants and food environments.
Certified by RoHS, ensuring compliance with environmental safety standards and providing market access.
Hardness: HRC60-66
Sizes: 1/32″(0.8mm) to 76.2mm
Grade:G10,G20,G24,G28,G40,G60,G100,G200,G500, G1000
Applications:
Precsion ball bearing and linear
Tumbling media
Spray can agitation
Drawer slides
Writing instruments
Locking mechanisms
Profile
Chrome steel ball is an excellent and universal material for ball and roller bearing industry,which is made from chrome alloy steel AISI52100.They offer high hardness, superior resistance to fatigue, outstanding wear resistance, and exceptional dimensional stability to excel in all bearing applications.
Characteristics: Chrome steel ball demonstrates high hardness, resistance to deformation, and excellent wear characteristics.
MATERIAL ANALYSIS
| Material Conversion | ASTM/AISI | DIN | W – Nr | NF | JIS |
|---|---|---|---|---|---|
| 52100 | 100Cr6 | 1.3505 | 100C6 | SUJ2 | |
| Chemical Composition in % | |||||
| Carbon | Chromium | Manganese | Silicon | Sulfur | Phosphorous |
| 0.98 to 1.10% | 1.30 to 1.60% | 0.25 to 0.45% | 0.15 to 0.35% | ≤0.025% | ≤0.025% |
MECHANICAL PROPERTIES OF CHROME STEEL BALL
| Tensile strength | 325,000 psi |
|---|---|
| Yield strength | 295,000 psi |
| Elongation in Two Inches | 5% |
| Reduction in Area | 8% |
| Modulus of Elasticity | 29,500,000 psi |
| Density | 0.283 lbs/cubic inch |
