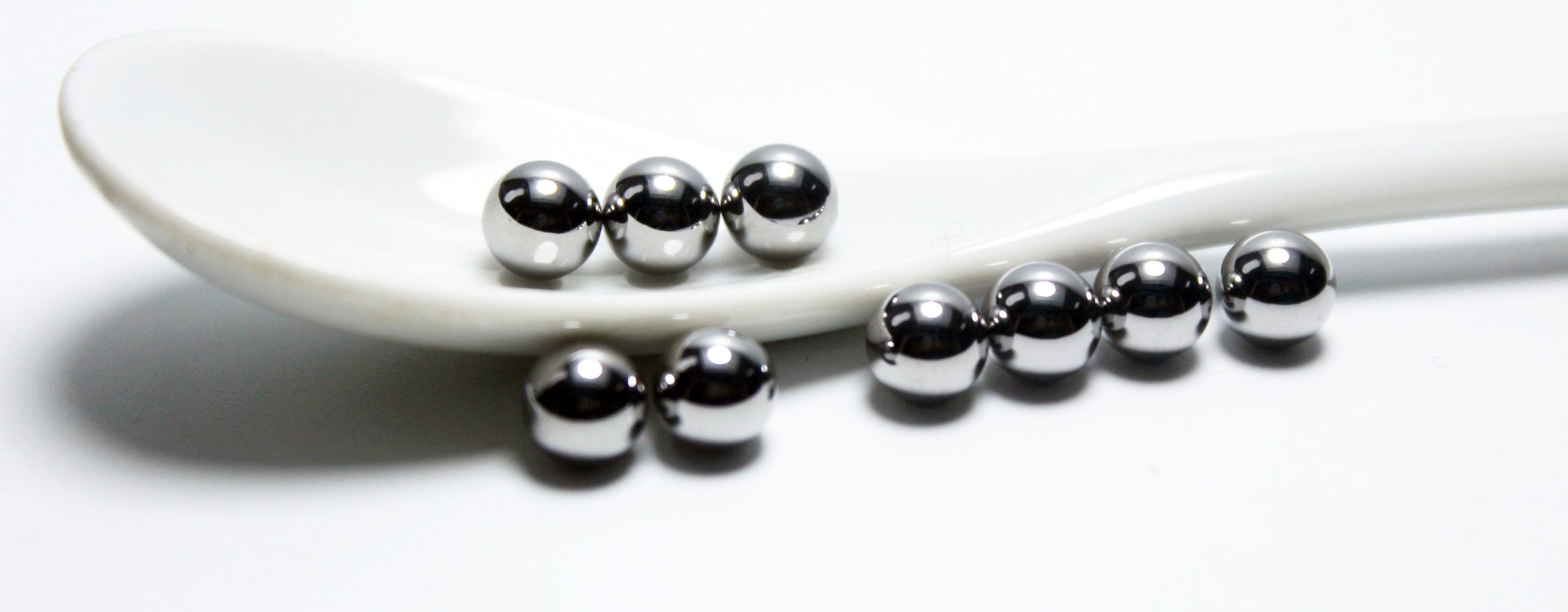

G100 SS316L Stainless Steel Balls 6mm bearing ball
G100 SS316L Stainless Steel Balls 6mm bearing ball
Resistant 316L Stainless Steel Balls – Essential for Chemical & Food Industries
Facebook
Twitter
LinkedIn
- G100 SS316L Stainless Steel Balls 6mm bearing ball
- 6mm diameter
- Precision-grade G100 balls.
- Made of 316L stainless steel, superior to 316 in corrosion resistance.
- Precision balls with a smooth surface.
- Excellent corrosion resistance to sulfuric acid compounds.
AISI type 316L stainless steel has a lower carbon content than 316 stainless, which gives it even higher corrosion resistance than the excellent resistance of type 316. Both types offer excellent resistance to sulphuric acid compounds. Applications for type 316L balls include Jewelry and medical uses.
| Material | ASTM / AISI | YB | JIS | DIN | |||
|---|---|---|---|---|---|---|---|
| Conversion | 316L | X2CrNiMo18 | SUS316L | 1.4404 | |||
| Composition | C | Cr | Mn | Si | P | S | Ni |
| 0.03%Max | 16-18% | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 10-14% | |
| Mechancial Properties | Tensile Strength | 800,000 – 120,000 psi | |||||
| Yield Strength | 45,000 psi | ||||||
| ELONGATION IN TWO INCHES | 10%-15% | ||||||
| Modulus of Elasticity | 29,000,000 PSI | ||||||
| Rededuction area | 55%-65% | ||||||
| Density | 0.287 Ibs/cu in | ||||||
| Physical Property | Corrosion resistance | Good | |||||
| Magnetic | No | ||||||
