Tungsten Carbide Balls
Material:
YG6,YG8,YG13YN6,YN9,YN12,YT5.
Mechnical features:
100% virgin micro-grain carbide;
Extreme hardness;
Impacts, wear and abrasion, corrosion, and hard shocks resistance;
Varied grades and specifications;
Ground and unground;
High and consistent quality;
Customization services.
Size:0.3-76.2mm
Hardness:Rockwell HRA90-92
Precision:G10,G15,G25
Facebook
Twitter
LinkedIn

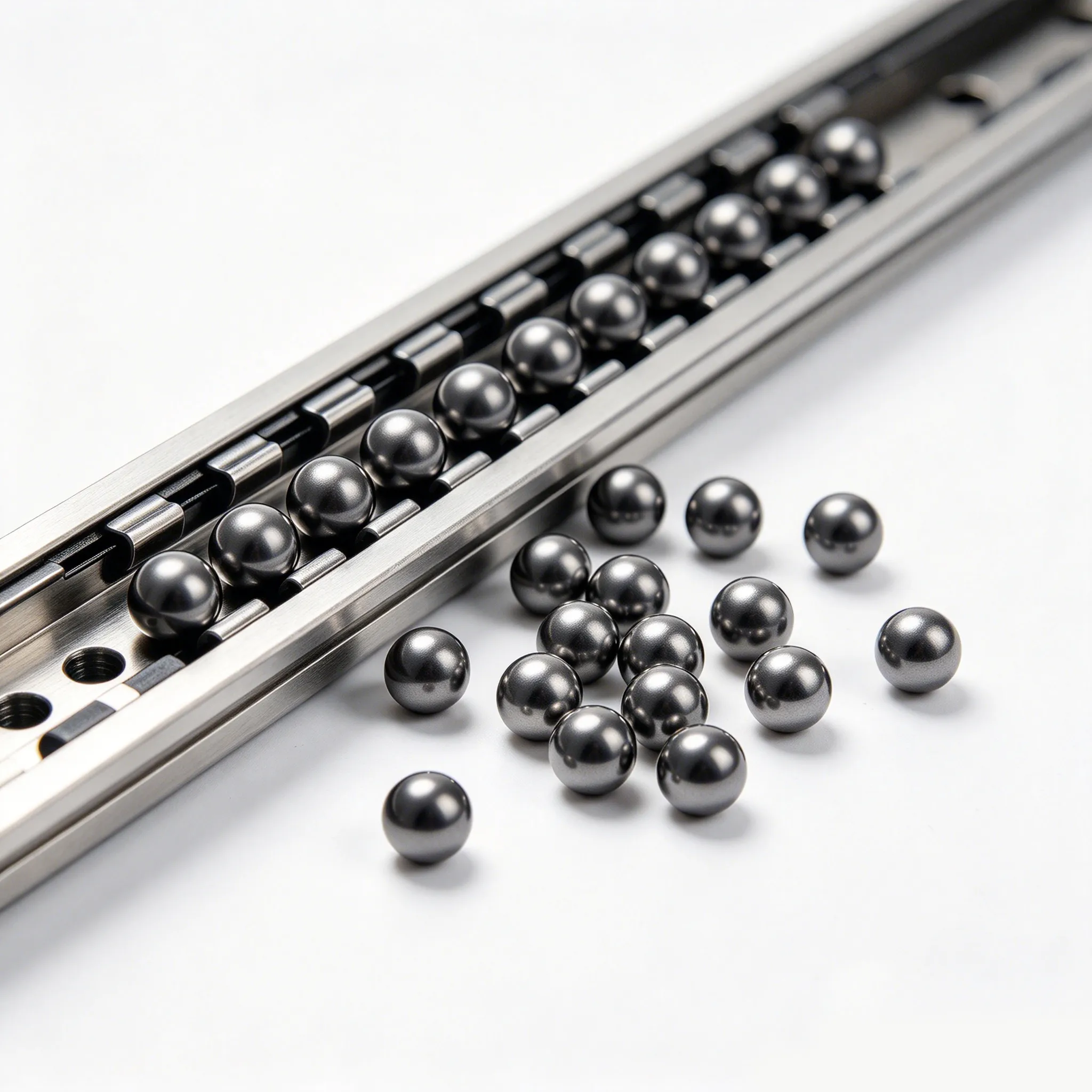

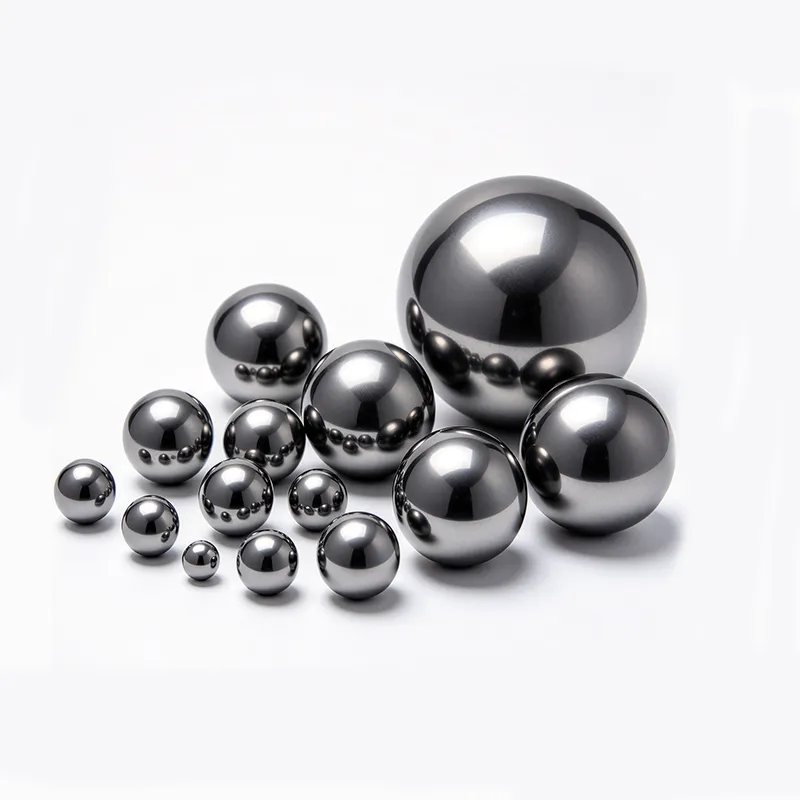

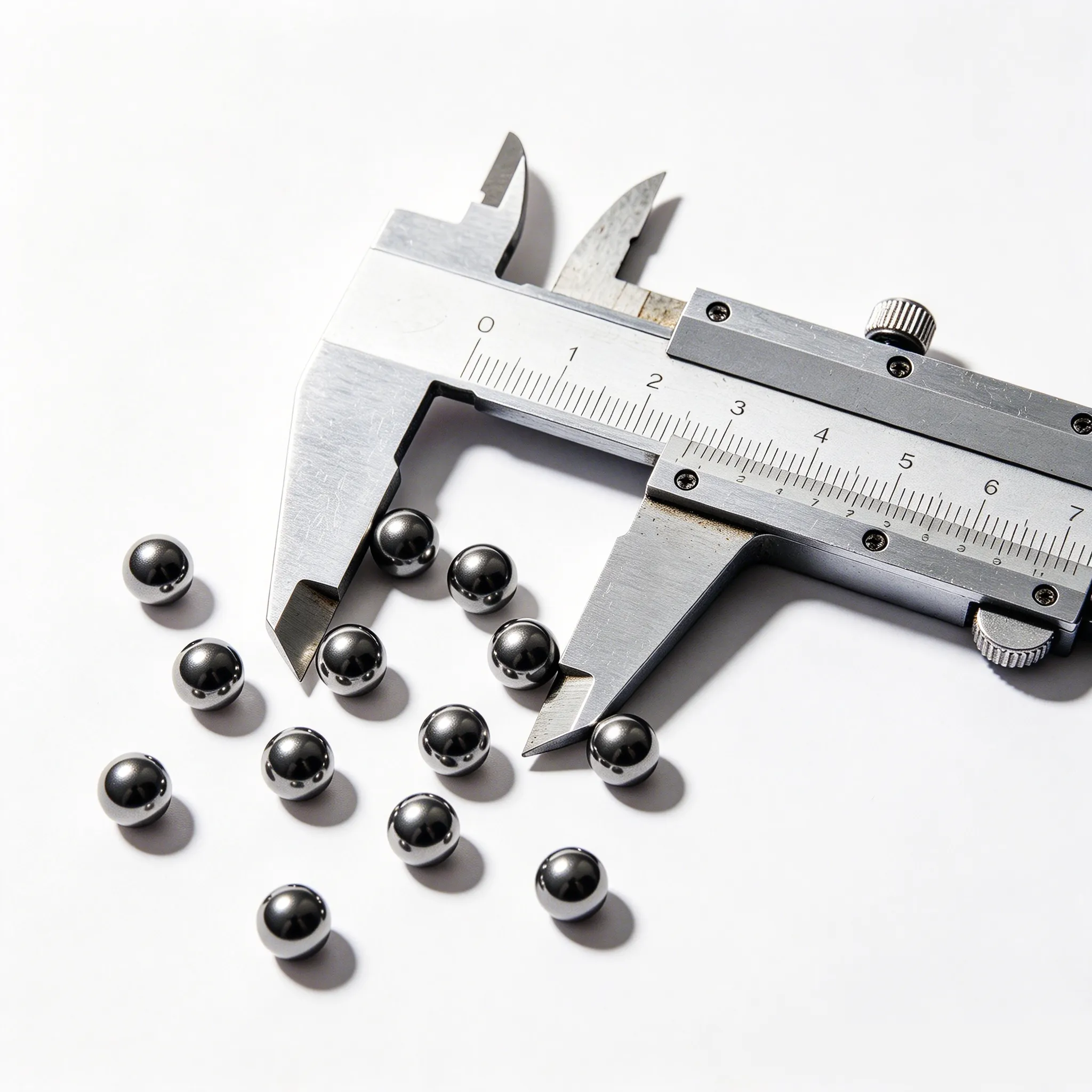

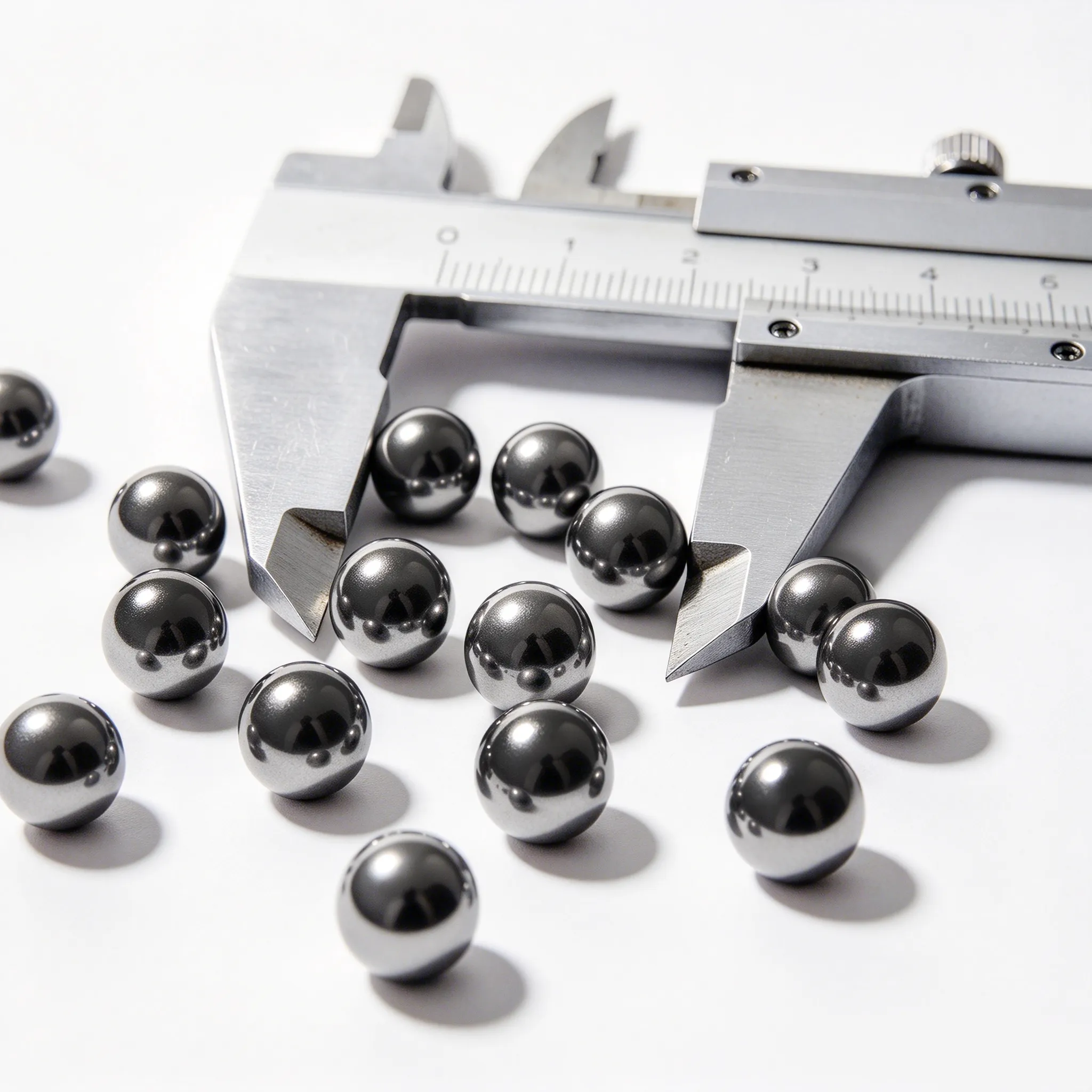

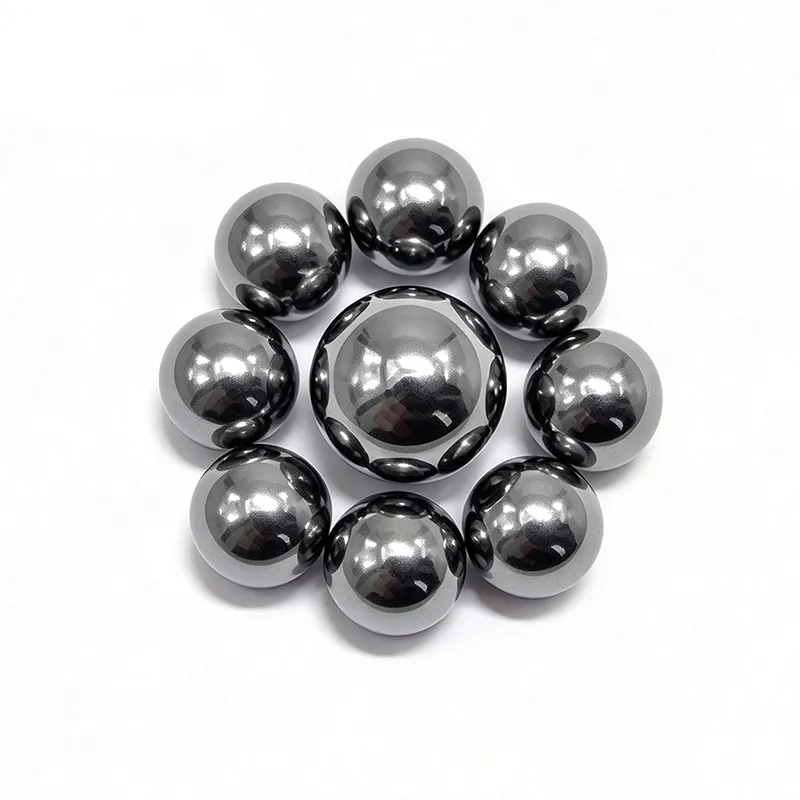

Tungsten Carbide Balls are precision-engineered spheres made from tungsten carbide (WC) with a cobalt binder, offering exceptional hardness (HRA 90.5–91.5) and a density of 14.5–14.9 g/cm³. They deliver outstanding wear resistance, high compressive strength, and excellent dimensional stability under extreme conditions. Ideal for precision bearings, valves, ball screws, measuring instruments, and grinding media. Available in sizes from 0.3mm to 76.2mm, with grades G10 to G100.
Description of Tungsten Carbide Balls
Specifications
● Diameter range: From as small as Φ0.3mm to 76.2mm or larger.
● Precision grade: Up to G10, suitable for precision applications.
● Material grades: YG6,YG8,YG10, YG13, YN6, YN9, YN12, YT5, YT15, etc.
● Customization: Customization services available, including dimensions, tolerances, and surface finishes.
Profile
Introduction
Tungsten carbide balls are manufactured from tungsten carbide (WC) and metallic binders (such as cobalt) using powder metallurgy processes, resulting in exceptional hardness and wear resistance. They maintain dimensional and structural stability even under demanding conditions, including high temperatures and exposure to corrosive media.
● Production Process: Powder metallurgy, involving mixing, pressing, and sintering, followed by grinding and polishing.
● Applications: Valve seals, precision bearings, ball valves for oil pipelines, mold manufacturing, measuring instruments, aerospace, medical equipment, etc.
● Performance Specifications: Hardness ≥ 90.5 HRA; density ≈ 14.9 g/cm³; high compressive strength; excellent thermal stability.
Features
● High Hardness: The hardness of cemented carbide balls far exceeds that of ordinary steel balls, allowing them to maintain a sharp contact surface.
● High Wear Resistance: They retain their shape and dimensions even under continuous friction and wear.
● High-Temperature Resistance: Performance remains stable in high-temperature environments exceeding 400°C.
● Corrosion Resistance: They are resistant to damage in acidic or alkaline environments and corrosive media.
● High Precision: They feature excellent surface finish and dimensional consistency, making them suitable for precision equipment.
● Bending Resistance: They possess high rigidity and are resistant to deformation.
Applications:
YG6 is widely used in various hardware sectors, as well as in valves, bearings, die-casting, punching, grinding, and metrology.
YG6X is widely used in various hardware sectors, as well as in valves, bearings, die-casting, punching, grinding, metrology, the chemical industry, and the petroleum industry.
YG8 is widely used in valves, bearings, die-casting, punching, grinding, metrology, hardness testing, the petroleum and chemical industries, and aerospace.
