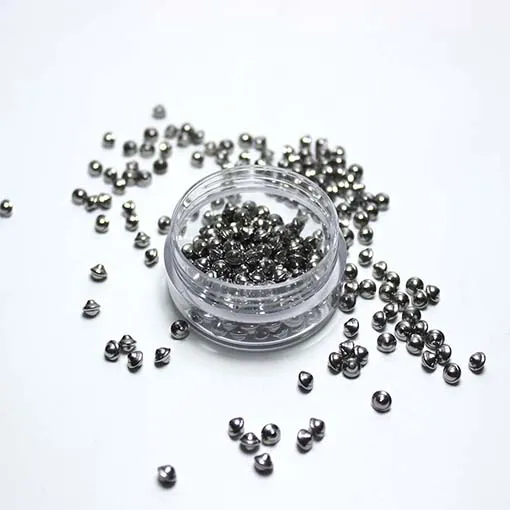

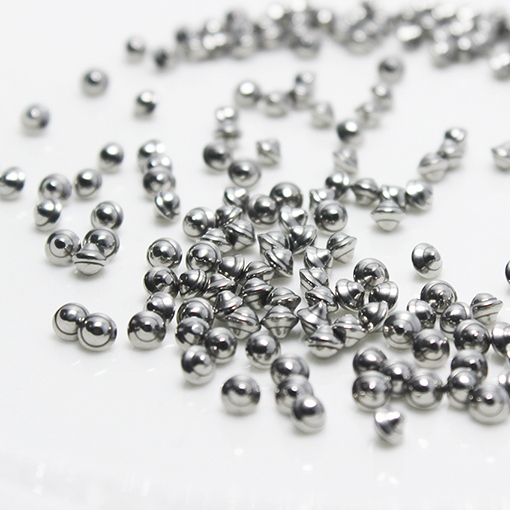

stainless steel grinding media ballcones
Sizes available:1/8″,5/32″,3/16″,1/4″,5/16″
Facebook
Twitter
LinkedIn
Satellites (spheres) are a few millimeters in size, while Saturns are 2 or 3 mm (for example, 3×5 mm, 5×7 mm, or 7×10 mm).
They are sold by weight, just like polished spheres.
Spherocones are less flat, with a standard size of 5×5 mm.
Tolerances are larger and not uniform.
Profile
Grinding media are used to grind or pulverize materials to reduce particle size and refine them. Grinding media come in a wide variety of materials, shapes, and sizes. The appropriate media depends on the intended application. These characteristics affect how the material is handled and the media’s lifespan.
| General Grinding Media Specifications | ||||||
|---|---|---|---|---|---|---|
| Type | Material | Hardness | Features | Sizes | ||
Balls |
Carbon Steel Balls | AISI 1015 | HRC58-62 | Case Hardened | Super-fine surface | 0.5mm to 76.2mm |
| AISI 1065/85 | HRC80 | Through Hardened | Super-fine surface | |||
| Chrome Steel Balls | AISI 52100 Chrome Steel | HRC62-65 | Through Rockwell “C” | Super-fine surface | 0.5mm to 76.2mm | |
| Stainless Steel Balls | AISI420 | HRC50 | MAGNETIC | Super-fine surface | 0.5mm to 76.2mm | |
| AISI304/316 | HRC30 | NON MAGNETIC | Super-fine surface | 0.5mm to 76.2mm | ||
| AISI304/316 | NA | Super-fine surface | 0.5mm to 76.2mm | |||
| Zirconia Balls | ZRO2 Hardness 1100 HV | 1100 HV | Durable and efficient | Virtually contamination-free | 0.5mm to 76.2mm | |
Other Shape |
Ballcone/Satellite | AISI1015/1085,SS402/304/316 | HRC60 | Provide contact angles and on curved surfaces | 1/8″-3/8″ | |
| Barrels | AISI1085,SS402/304/316 | HRC60 | Provide more effecitve for burning. | 1/8″-3/8″ | ||
| Ovals | AISI1085,SS402/304/316 | HRC60 | Provide more effecitve for burning. | 1/8″-3/8″ | ||
| DIagnals | AISI1085,SS402/304/316 | HRC60 | Provide more effecitve for burning. | 1/8″-3/8″ | ||
| Pins | AISI1085,SS402/304/316 | HRC60 | Provide more effecitve for burning. | 1.5mmX10mm | ||
| Flat pins | AISI1085,SS402/304/316 | HRC60 | Provide more effecitve for burning. | 1.2mmX2.5mmX10mm | ||
