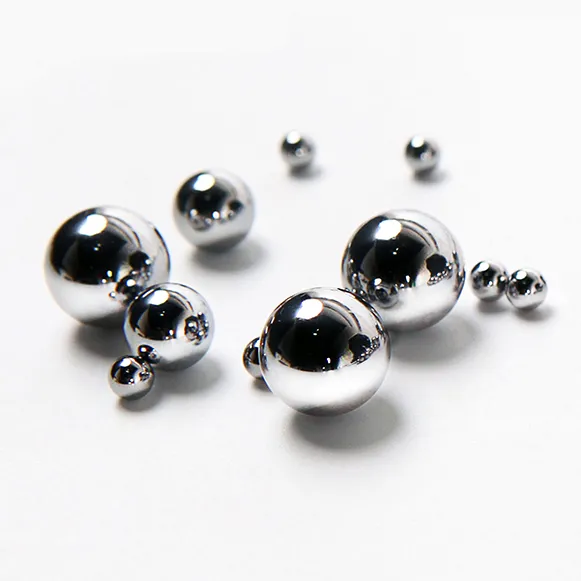

6.0mm Chrome Steel Balls
Material: Chrome Steel AISI52100
Size:6mm
Grade available: G10,G28,G40,G100
Facebook
Twitter
LinkedIn
These 6.0 mm chrome steel balls are made of AISI 52100 (100Cr6) high‑carbon chromium bearing steel, with precision quality grade G10‑G100, hardness HRC 60‑66. Featuring fine sphericity, mirror‑polished surface, outstanding wear‑resistance and fatigue resistance, they deliver stable mechanical performance under heavy loads,Widely applied for ball bearings, linear guides, bicycle parts, auto components, casters and precision machinery assemblies for smooth‑running industrial operation.
Hardness: HRC60-66
Sizes: 1/32″(0.8mm) to 76.2mm
Grade:G10,G20,G24,G28,G40,G60,G100,G200,G500, G1000
Applications:
Precsion ball bearing and linear
Tumbling media
Spray can agitation
Drawer slides
Writing instruments
Locking mechanisms
Profile
Chrome steel ball is an excellent and universal material for ball and roller bearing industry,which is made from chrome alloy steel AISI52100.They offer high hardness, superior resistance to fatigue, outstanding wear resistance, and exceptional dimensional stability to excel in all bearing applications.
Characteristics: Chrome steel ball demonstrates high hardness, resistance to deformation, and excellent wear characteristics.
MATERIAL ANALYSIS
| Material Conversion | ASTM/AISI | DIN | W – Nr | NF | JIS |
|---|---|---|---|---|---|
| 52100 | 100Cr6 | 1.3505 | 100C6 | SUJ2 | |
| Chemical Composition in % | |||||
| Carbon | Chromium | Manganese | Silicon | Sulfur | Phosphorous |
| 0.98 to 1.10% | 1.30 to 1.60% | 0.25 to 0.45% | 0.15 to 0.35% | ≤0.025% | ≤0.025% |
MECHANICAL PROPERTIES OF CHROME STEEL BALL
| Tensile strength | 325,000 psi |
|---|---|
| Yield strength | 295,000 psi |
| Elongation in Two Inches | 5% |
| Reduction in Area | 8% |
| Modulus of Elasticity | 29,500,000 psi |
| Density | 0.283 lbs/cubic inch |
